30/01/98 |
GB |
C14 |
30/06/98 |
GTi 16V |
| 1235 01 |
3346 |
40 |
|
Hnací hřídel - převody -
synchrony |
| |
|
|
|
|
|
1 |
96 032
825 |
01 |
PRIMARY
SHAFT 12-20-13 |
| |
RP 2311 94 . |
01 |
|
| |
|
|
DRIVE GEAR |
|
2 |
97 535
399 |
01 |
3E - 25
DENTS |
| |
RP 2331 07 . |
01 |
|
|
3 |
94 02 332
040 |
01 |
4E - 32
DENTS |
| |
RP 2332 08 . |
01 |
|
|
4 |
94 02 333
120 |
01 |
5E - 37
DENTS |
| |
RP 2333 19 . |
01 |
|
|
5 |
96 032
965 |
01 |
SLIDING
GEAR M AR - 31 DTS |
| |
RP 2381 30 . |
01 |
|
| |
|
|
SYNCHRONYZER |
|
6 |
94 02 353
340 |
01 |
3E - 4E |
| |
RP 2353 40 . |
01 |
|
|
7 |
94 02 353
310 |
01 |
5E |
| |
RP 2388 04 . |
01 |
|
|
8 |
96 042
811 |
02 |
BEARING
DIAM 25X47X15 |
| |
RP 2372 40 . |
01 |
SNR |
|
9 |
97 500
325 |
01 |
RETURN
SHAFT M AR - DIAM 18 |
| |
RP 2382 23 . |
01 |
|
|
10 |
79 03 040
029 |
01 |
SELF
LOCKG NUT 20X150-10 |
| |
RP 2304 43 . |
01 |
|
|
11 |
79 03 067 104 . |
01 |
PIN 4X20 |
|
12 |
97 500
278 |
01 |
SPACER |
| |
RP 2313 75 . |
01 |
|
| |
|
|
ADJUSTMENT SHIM |
|
13 |
79 03 053
439 |
01 |
DIAM
39X46,8X0,7 |
| |
LISTE 9506 . |
|
|
| |
79 03 053
442 |
01 |
DIAM
39X46,8X1,0 |
| |
LISTE 9506 . |
|
|
| |
79 03 053
443 |
01 |
DIAM
39X46,8X1,1 |
| |
LISTE 9506 . |
|
|
| |
79 03 053
444 |
01 |
DIAM
39X46,8X1,2 |
| |
LISTE 9506 . |
|
|
| |
79 03 053
445 |
01 |
DIAM
39X46,8X1,3 |
| |
LISTE 9506 . |
|
|
| |
79 03 053
446 |
01 |
DIAM
39X46,8X1,4 |
| |
LISTE 9503 . |
|
|
|
14 |
96 077
209 |
01 |
PRIM
SHAFT SEAL DIAM 23X36X7 |
| |
RP 2109 40 . |
01 |
|
|
15 |
79 03 101
307 |
01 |
CAPSCREW
DIAM 8X1,25-50 |
| |
RP 6933 04 . |
01 |
|
|
16 |
00 81 508
500 |
01 |
SHAFT
SEAL DIAM 8X15X2 |
| |
RP 2385 09 . |
01 |
|
Nahoru
|
30/01/98 |
GB |
D15 |
30/06/98 |
GTi 16V |
| 1235 01 |
3351 |
20 |
|
Závlačky a vidličky |
| |
|
|
|
|
|
1 |
95 653 036 . |
01 |
SELECTION
LEVER |
|
2 |
94 02 519
450 |
01 |
SPINDLE +
FINGER |
| |
RP 2519 56 . |
01 |
|
|
3 |
96 003
302 |
01 |
FORK
SHAFT 1E-2E-3E-LON256,5 |
| |
RP 2546 34 . |
01 |
|
|
4 |
94 02 558
110 |
01 |
PIN+FORK
5E |
| |
RP 2558 11 . |
01 |
|
| |
|
|
GR-BOX FORK 1+2 |
|
5 |
96 030
532 |
01 |
1E-2E |
| |
RP 2553 45 . |
01 |
UP TO O
5501 |
| |
96 117
376 |
01 |
SINCE O
5502 |
| |
RP 2553 45 . |
01 |
|
|
6 |
96 030
535 |
01 |
GR-BOX
FORK 3+4 |
| |
RP 2552 52 . |
01 |
|
|
7 |
96 030
539 |
01 |
ROCKING
MEMBER |
| |
RP 2552 08 . |
01 |
|
|
8 |
96 003
339 |
01 |
SPRING
BRACKET |
| |
RP 2528 16 . |
01 |
|
|
9 |
96 012
834 |
01 |
SHAFT |
| |
RP 2552 06 . |
01 |
|
|
10 |
97 517
580 |
01 |
LOCKING
FINGER LON 21 |
| |
RP 2540 33 . |
01 |
|
|
11 |
96 039
985 |
01 |
LOCKING
SPRING |
| |
RP 2539 34 . |
01 |
|
|
12 |
96 058
053 |
01 |
SPRING |
| |
RP 2539 35 . |
01 |
|
|
13 |
97 532
122 |
01 |
LEVER
SPRING H 12,2 |
| |
RP 2527 34 . |
01 |
|
|
14 |
97 500
328 |
01 |
FORK STOP
PLATE |
| |
RP 2549 14 . |
01 |
|
|
15 |
79 03 090
022 |
01 |
LOCKING
BALL DIAM 8 |
| |
RP 2538 07 . |
01 |
|
|
16 |
96 035
199 |
01 |
SHAFT
SEAL DIAM 16X30X7X11 |
| |
RP 2515 22 . |
01 |
|
| |
|
|
STOP-RING |
|
17 |
79 03 066 095 . |
01 |
19,8X22-1 |
|
18 |
96 035
244 |
01 |
|
| |
RP 6979 86 . |
01 |
|
|
19 |
79 03 065
008 |
02 |
RING-SEAL
DIAM INT 15X20X2,5 |
| |
RP 2541 20 . |
01 |
|
| |
|
|
PIN |
|
20 |
79 03 067
063 |
03 |
DIAM 3-15
ELAST |
| |
RP 6968 23 . |
01 |
|
|
21 |
97 520
820 |
01 |
DIAM
4,5-22 |
| |
RP 6968 71 . |
01 |
|
|
22 |
97 599
251 |
01 |
DIAM 4,5
LON 30 |
| |
RP 6969 05 . |
01 |
|
|
23 |
79 03 067
074 |
01 |
DIAM 7X30 |
| |
RP 6969 45 . |
01 |
|
|
24 |
79 03 067
037 |
01 |
DIAM 4,5-LON
25 |
| |
RP 6968 45 . |
01 |
|
|
25 |
79 03 067
038 |
01 |
DIAM 7-25 |
| |
RP 6968 44 . |
01 |
|
|
26 |
97 599
241 |
01 |
SCREW CHC
7X1,00-22 |
| |
RP 6913 98 . |
01 |
|
|
27 |
00 80 624 600 . |
01 |
CAPSCREW
DIAM 7X1,00-22 |
| |
|
|
PLAIN WASHER |
|
28 |
79 03 053
425 |
02 |
DIAM
7,1X22X3 |
| |
RP 6947 55 . |
01 |
|
|
29 |
97 532
121 |
01 |
DIAM
28X16,5X1 |
| |
RP 6947 84 . |
01 |
|
|
30 |
79 03 062 014 . |
01 |
GRBX
SWITC SEAL DIAM 15,2X21X1 |
|
31 |
96 020
369 |
01 |
NUT WITH
BASE DIAM 12X1,50 |
| |
RP 6934 28 . |
01 |
|
Nahoru
|
30/01/98 |
GB |
D13 |
30/06/98 |
GTi 16V |
| 1235 01 |
3357 |
10 |
|
Táhla řazení |
| |
|
|
 |
|
|
1 |
96 037 671 . |
01 |
SELECTION
BAR |
|
2 |
96 071 597 . |
01 |
GEARSHIFT
BAR DIAM 13 LON 680,3 |
|
3 |
96 049 753 . |
01 |
GEARSHIFT
LINK L 241 DIAM 13 |
|
4 |
96 012 463 . |
01 |
SELECTION
LINK L 131 DIAM 10 |
|
5 |
96 995 075 . |
01 |
CONTROL
SHEATH C/C DIAM 17X27-30 |
|
6 |
96 012 462 . |
01 |
LEVER |
|
7 |
91 512
751 |
01 |
LEVER
BALL DIAM 13 DIAM |
| |
RP 2436 38 . |
01 |
|
|
8 |
95 567
239 |
02 |
BEARING
BUSH |
| |
RP 2430 20 . |
01 |
|
|
9 |
79 03 201
052 |
01 |
CAPSCREW
10X |
| |
RP 6921 91 . |
01 |
|
|
10 |
96 017
206 |
01 |
SPACER
DIAM 14X10,2-30,7 |
| |
RP 2419 23 . |
01 |
|
|
11 |
95 609
905 |
01 |
CUP |
| |
RP 2447 06 . |
01 |
|
|
12 |
79 03 053
394 |
01 |
PLAIN
WASHER DIAM 10X20 EP 2 |
| |
RP 6946 77 . |
01 |
|
Nahoru
|

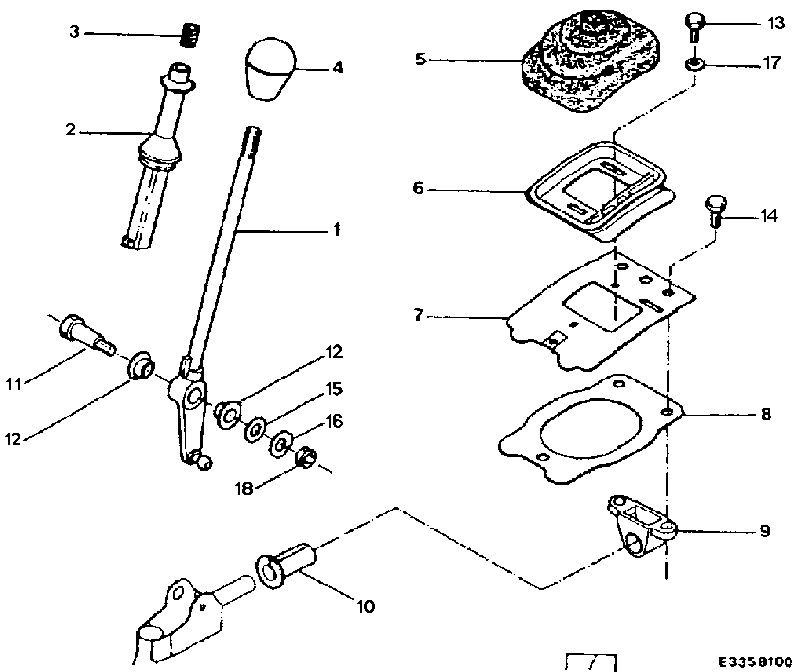

30/01/98 |
GB |
D11 |
30/06/98 |
GTi 16V |
| 1235 01 |
3358 |
10 |
|
Řadící páka - kulisa |
| |
|
|
 |
|
|
1 |
95 567 217 . |
01 |
CONTROL
LEVER |
|
2 |
95 609
907 FXX |
01 |
REVERSE
CONTROL |
| |
RP 95 609 907 XX . |
01 |
|
|
3 |
95 567
221 |
01 |
LEVER
SPRING DIAM 13 |
| |
RP 2400 74 . |
01 |
|
|
4 |
95 631 202 . |
01 |
LEVER
HANDLE JONC NOIR |
|
5 |
95 609 906 . |
01 |
LEVER
GAITER |
|
6 |
95 609 910 . |
01 |
REVERSE
STOP MAR |
|
7 |
95 592 505 . |
01 |
LEVEL
BRACKET |
|
8 |
95 609 908 . |
01 |
LEVER
GASKET |
|
9 |
95 610 799 . |
01 |
BAR
BEARING |
|
10 |
95 579 254 . |
01 |
SHAFT
SOCKET |
|
11 |
79 10 023
759 |
01 |
LEVER
SPINDLE DIAM 12 DIAM 8X1,00 |
| |
RP 2455 20 . |
01 |
|
|
12 |
79 10 005
487 |
02 |
SHAFT
SOCKET DIAM 12X15 |
| |
RP 2450 27 . |
01 |
|
|
13 |
79 03 101
393 |
02 |
CAPSCREW
THRI 6X1,00-16 |
| |
NFP . |
|
|
|
14 |
79 03 101
403 |
03 |
WASHER-SCREW
THRI 8X1,25-16 |
| |
NFP . |
|
|
|
15 |
79 03 053
508 |
01 |
PLAIN
WASHER 12,5X24-1,5 |
| |
RP 6946 28 . |
01 |
|
|
16 |
79 03 057
019 |
01 |
FLEXIBLE
WASHER DIAM 12 |
| |
RP 6962 45 . |
01 |
|
|
17 |
79 03 053
028 |
03 |
PLAIN
WASHER 6X12-1,2 |
| |
RP 6947 77 . |
01 |
|
|
18 |
79 03 034
004 |
01 |
SELF
LOCKG NUT HE 8X1,00 |
| |
RP 6939 45 . |
01 |
|
Nahoru
|
30/01/98 |
GB |
D08 |
30/06/98 |
GTi 16V |
| 1235 01 |
3360 |
10 |
|
Manžeta řadící páky |
| |
|
|
 |
|
|
1 |
96 017 606 . |
01 |
LEVER
GAITER |
|
2 |
95 562 698 . |
01 |
COVERIN
BRACKET |
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
Nahoru
|
30/01/98 |
GB |
D07 |
30/06/98 |
GTi 16V |
| 1235 01 |
3430 |
40 |
|
DIFERENCIÁL |
| |
|
|
 |
|
|
1 |
97 500
648 |
01 |
RING GEAR
62 DENTS |
| |
RP 3103 44 . |
01 |
|
|
2 |
96 024
241 |
01 |
GEAR SET
16/10 DTS-DIAM 77(A) |
| |
RP 3106 07 . |
01 |
-BVA |
|
3 |
96 019
896 |
01 |
GEARS
SPINDLE DIAM 15,9 - LON 93,5 |
| |
RP 3108 28 . |
01 |
|
|
4 |
97 533
997 |
02 |
PLANET
CUP 16X36-0,45 |
| |
RP 3110 22 . |
01 |
|
|
5 |
97 518
121 |
02 |
CENTRING
BUSH DIAM 32X6-0,7 |
| |
RP 3111 13 . |
01 |
|
|
6 |
3115 A8 . |
02 |
FRICTION
CUP 31X57-0,45 |
|
7 |
96 024
627 |
01 |
DIFF
HOUSING DIAM 77 |
| |
RP 3118 53 . |
01 |
|
|
8 |
97 511
920 |
02 |
DIFFER
BEARING DIAM 38X63-17 |
| |
RP 3125 18 . |
01 |
|
|
9 |
96 017
828 |
08 |
RING GEAR
SCREW |
| |
RP 3119 40 . |
01 |
|
| |
|
|
SEAL |
|
10 |
96 080
793 |
01 |
DIAM
40X58X10 |
| |
RP 3121 27 . |
01 |
GAUCHE |
|
11 |
96 080
792 |
01 |
RIGHT
DIAM 29,9X47-11,3 |
| |
RP 3121 26 . |
01 |
|
| |
|
|
WASHER |
|
12 |
79 03 053
430 |
01 |
DIAM
55X62,8-1,4 |
| |
LISTE 9604 . |
|
|
| |
79 03 053
431 |
01 |
DIAM
55X62,8-1,5 |
| |
LISTE 9506 . |
|
|
| |
79 03 053
432 |
01 |
DIAM
55X62,8.1,6 |
| |
LISTE 9506 . |
|
|
|
30 |
79 03 067
006 |
02 |
PIN
3,5X25 |
| |
RP 6968 58 . |
01 |
|
